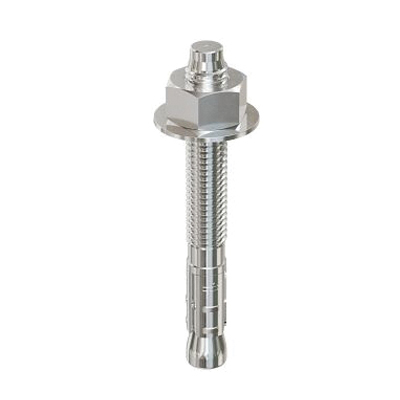

Strong-Bolt 2 STB2-50414P1 Wedge Anchor, 1/2 in Dia, 4-1/4 in OAL, Carbon Steel, Zinc

Name: Strong-Bolt 2 STB2-50414P1 Wedge Anchor, 1/2 in Dia, 4-1/4 in OAL, Carbon Steel, Zinc
Brand: Simpson Strong-Tie
SKU: 12275010

Sku: 12275010

$1.99

0 Available at San Marcos

Location: Aisle 4

1/2 Inch Wedge Anchor Options:Simpson STB2-50414P1 Wedge 1/2inDiax4-1/4inL

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.

Chamfered top designed to prevent mushrooming during installation
Suitable for horizontal, vertical and overhead applications

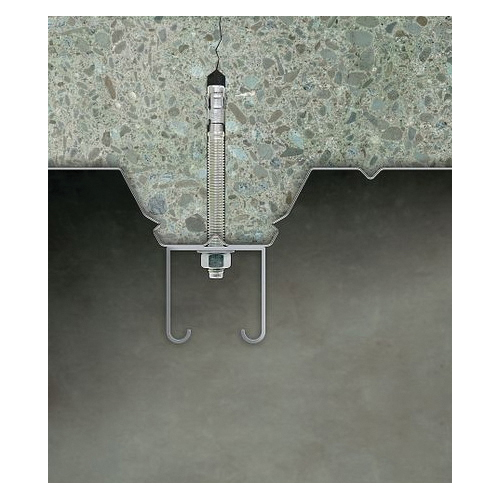

Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete-over-steel deck thickness of 2-1/2 and 3-1/4 in
Standard (ANSI) fractional sizes, fits standard fixtures and installs with common drill bit and tool sizes

Diameter

1/2

Minimum Embedment Depth

2-3/4 to 3-7/8

Drill Size

1/2

Thread Length

2-9/16

Tensile Strength

115,000

Shear Strength

7235
